THARO   H627+

SKU# (4)



THARO H627+

LABEL PRINTERS / INDUSTRIAL
THARO

$2,110.50  [In Stock]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
  • Movie
THARO H-627+ Series Thermal Transfer Barcode Label Printer. 203 dpi (8 dot/mm) resolution. Equipped with Thermal Transfer/Direct Thermal print mode with a 50.8 mm (2") ~ 168 mm (6.61") inch print width, and a 13 mm (0.51") ~ 2997.2 mm (118") inch print legth. 50.8 mm (2") ~ 152.4 mm (6")/sec print speed. Ethernet TCP/IP port included. ** replaces H626E **

H627+
2,110.50

Internal Rewind
Heavy Duty Cutter
Applicator Interface

  [  In Stock  ]
|Brochure |Users Manual| Flyer| Flash Presentation|

  • The new THARO H-400/H-600 Series printers have an elegant design, are extremely compact and are robust enough for commercial use. They feature a durable, all metal construction with a cast Aluminum center wall and a large media window for easy viewing and monitoring of supplies.
  • Now available in 4 inch (H-400) or 6 inch (H-600) print widths!
  • High quality output in your choice of 203 (H-427 and H-626) or 300 (H-436 and H-634)DPI.
  • Print in 203 or 300 dpi resolution with the same H-400/H-600 Series printer. Simply install a 203 dpi Printhead or a 300 dpi Printhead without using tools or making configuration changes.
  • The standard Stripper Sensor on the H-400 Series senses printed labels in either peel and present or tear-off applications.
  • The H-400/H-600 Series printers are extremely versatile. No PC is necessary. Download your label formats to the Printer’s Flash Memory (or a CompactFlash Card), unplug the printer from the PC, plug in a standard PC keyboard, and take the printer to another location.
  • The H-400/H-600 Series printers are extremely easy to install options, accessories and to service.
  • The H-400/H-600 Series printers feature a 450m (1476’) ribbon capacity and a full 203mm (8”) O.D. label roll capacity making them suitable for large volume printing requirements.
  • The H-400/H-600 Series printers are designed to accept ribbon types of both ink inside and ink outside, providing more flexibility in ribbon selection.
  • The H-400/H-600 Series printers feature a Standard Real-Time Clock for time and date stamping of labels.
  • The H-400/H-600 Series printers have multiple interfaces for every application. Blazing fast USB 2.0 is standard on the H-400/H-600 Series printers for high-speed data transfer. Parallel and RS232 Serial are also included, or use the optional Ethernet Adaptor to print to your H-400/H-600 from anywhere in the world!
  • Print from Windows, UNIX, Linux or Mac! CUPS (Common UNIX Printing System) Drivers and Windows Drivers are included on the Printer’s Accessory CD.

  Software

  • Start printing labels right out of the box with the included FREE labeling software package EASYLABEL® Start.

Printer and Printhead Warranty

  • The H-400/H-600 feature a 1 year or 1 million linear meter warranty on their printheads
  • 24 month warranty

Print Method Thermal Transfer / Direct Thermal
Resolution 203 dpi (8 dot/mm)
Print Speed 7IPS (177mm/s)
Print Width (6.61") 168 mm
Print Length Min. 0.16”(4 mm)**:Max. 118”(3000 mm)
Processor 32 bit RISC CPU
Memory Flash: 8MB Flash (4MB for user storage)
SDRAM: 32MB
Sensor Type Adjustable reflective sensor and transmissive sensor, left aligned
Media Types: Continuos form, gap labesl, black mark sensing and punched hole; label length set by auto sensing or programming
Width: Tear : 2”(50.8 mm) Min. - 7”(178 mm) Max.
Cutter : 6.5”(165 mm) Max.
Peeler with Rewind : 7”(178 mm) Max.
Thickness: Min. 0.003”(0.076 mm) - Max. 0.01”(0.25mm)
Label Roll Diameter: Max. 8" (203.2 mm) with 3" (76.2 mm) core
Max. 6" (152.4 mm) with 1.5" (38.1 mm) core
Core Diameter: 1.5" (38.1 mm) - 3" (76.2 mm)
Ribbon Types: Wax, wax / resin,resin
Length: 1476' (450 m)
Width: Min. 2.36" - Max. 6.85" (60 mm - 174 mm)
Ribbon Roll Diameter: 2.99" (76 mm) Max.
Core diameter: 1" (25.4 mm)
Printer Language TPL
Software Label Design Software: EASYLABEL Start
Driver: Windows
Resident Fonts Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16x26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts(Bold/Italic/Underline). 0°,90°, 180°, 270° rotatable
Scalable Fonts: 90°, 180°, 270° rotatable
Downloadable Fonts Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian Fonts: 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable Fonts: 90°, 180°, 270° rotatable
Barcodes 1-D Bar Codes: Code 39, Code 93, EAN 8 / 13 (add on 2&5). UPC A / E (add on 2&5). I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC / EAN-128-K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar
2-D Bar Codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
Code Pages Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869 and 737
Windows 1250, 1251, 1252, 1253, 1254, 1255 and 1257
Unicode UTF8,UTF16BE,UTF16LE
Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces USB 2.0
Serial port: RS-232 (DB-9)
Ethernet 10/100 Mbps
USB Host
Control Panel Color TFT LCD with navigation button
Calibration button
Control key: FEED
Power on / off button
Power Auto Switching 110-240V AC, 50-60 Hz
Real Time Clock Standard
Environment Operation Temperature: 41°F to 104°F (5°C to 40°C)
Storage Temperature: -4°F to 122°F (-20°C to 50°C)
Humidity Operation: 30-85%, non-condensing
Storage: 10-90%, non-condensing
Agency Approvals CE (EMC), FCC Class A, CB, cUL, CCC
Dimension Length: 20.31”(516 mm)
Height: 11.22”(285 mm)
Width: 13.58”(345 mm)
Weight 36.8 lbs (16.7kg),excluding consumables
Options & Accesories Cutter Module
Label Dispenser + Internal Rewinder
Parallel port adapter module (Centronic female 36-pin)
Applicator Interface (1 input, 3 outputs, power 500mA @ 5V, for prohject base)
External label roll holder for 10" (250 mm) O.D. label rolls
External label rewinder
Export Info
Harmonized Tariff Code (HTC)84433990


 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    6 Items found.
033-12P019-060
(128)

THARO  033-12P019-060

INTERNAL ETHERNET ADAPTER CARD. Provides networking capability tothe H-400/H-600 and V Series printers. – Factory Installed only



$198.79
EL7G-USB
(122)

THARO  EL7G-USB

EASYLABEL GOLD 7 Barcode Labeling and Product Identification Software. Custom text formatting, unlimitted fields on a format, ADO and OLE DB support, importing options and EAN/UCC 128 Wizard. USB License Key included.

Configure

$490.50
023-62P001-060
(138)

THARO  023-62P001-060

Replacement H-626 PRINTHEAD, 203 dpi



$612.81
EWIND
(65)

THARO  EWIND

THARO EasyWinder Universal Label Rewind Powered label rewind compatible with direct thermal/thermal transfer printers with a web width capacity from 1” to 9” wide. Media Roll outside diameter capacity of 12”. *Unwind unit also available.



$787.05
023-63P001-060
(136)

THARO  023-63P001-060

Replacement H-634 PRINTHEAD, 300 dpi



$886.05
033-62P004-062
(130)

THARO  033-62P004-062

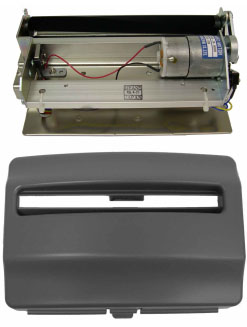

HEAVY DUTY CUTTER for Tharo H-600 Series. Cut labels or tag stock orfoil between labels, after batches oflabels, or at the end of a job.
